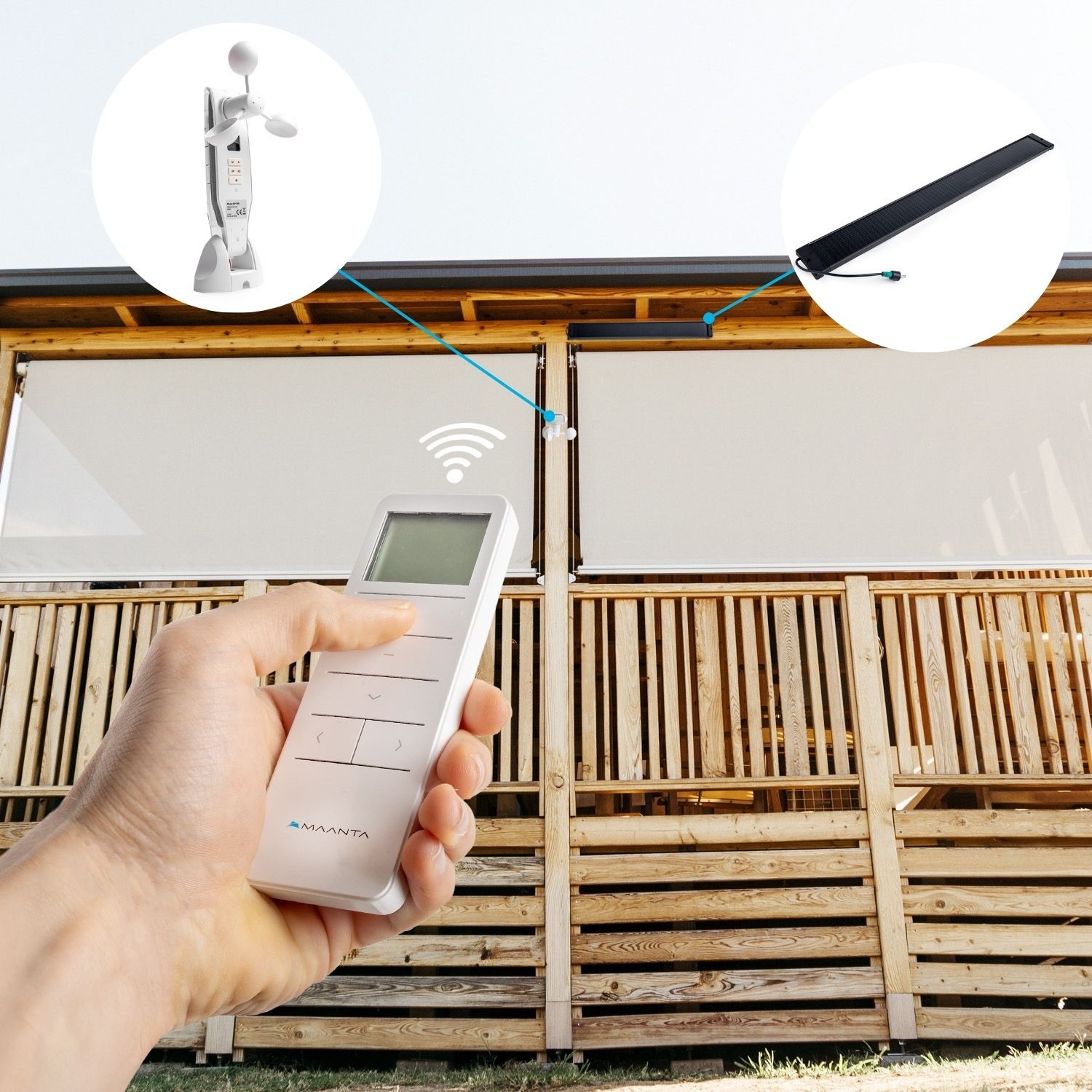

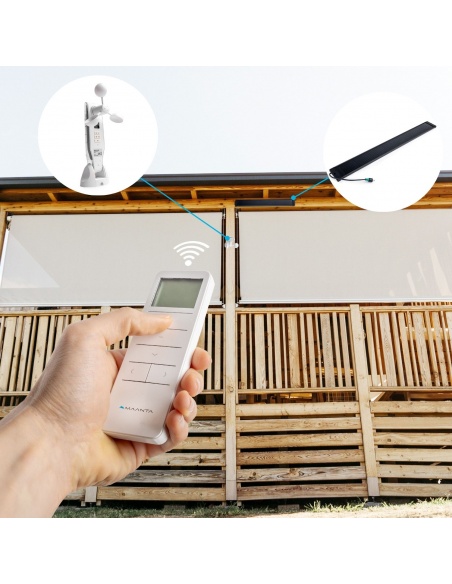

Motor Kit + Remote Control + Solar Panel + Anemometer Motorization kit for roller shades

The Full-Optional Motorization Kit for Maanta roller shades is the complete solution that allows you to transform your outdoor shades into a functional and independent battery-powered system, thanks to the anemometer. Experience the freedom of managing the shade and privacy of your outdoor spaces with a simple click, without wires and without the need for an electrician. Perfect for motorizing Maanta roller shades and ensuring shade on your balcony or porch.

  • Complete kit containing: Motor + Remote Control + Solar Panel + Anemometer
  • Independent and autonomous motorized system
click

Compatible with WiFi Bridge, Reef Roll, and Easy Clear with cables

-20% $629.00
$503.20
truck
truck
Order now and receive it
with UPS Carbon Neutral

YOU CAN TRUST

  • garanzia

    Free design service

  • 1-milione-vendite

    Delivery 24 / 48 hours

  • aiuto-progettazione

    After-Sales Service

WHY CHOOSE THE MOTORISATION KIT

100% Solar Energy
Complete independence from the electrical grid

This kit operates exclusively on solar energy with an integrated battery inside the motor. Forget about cables and electrical outlets: you cut costs and you can install it anywhere, even in locations without electricity.

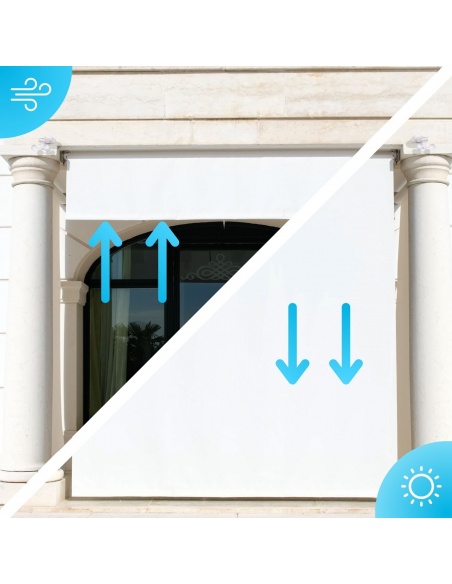

Automatic Wind Protection
Your blind goes up before the wind causes damage

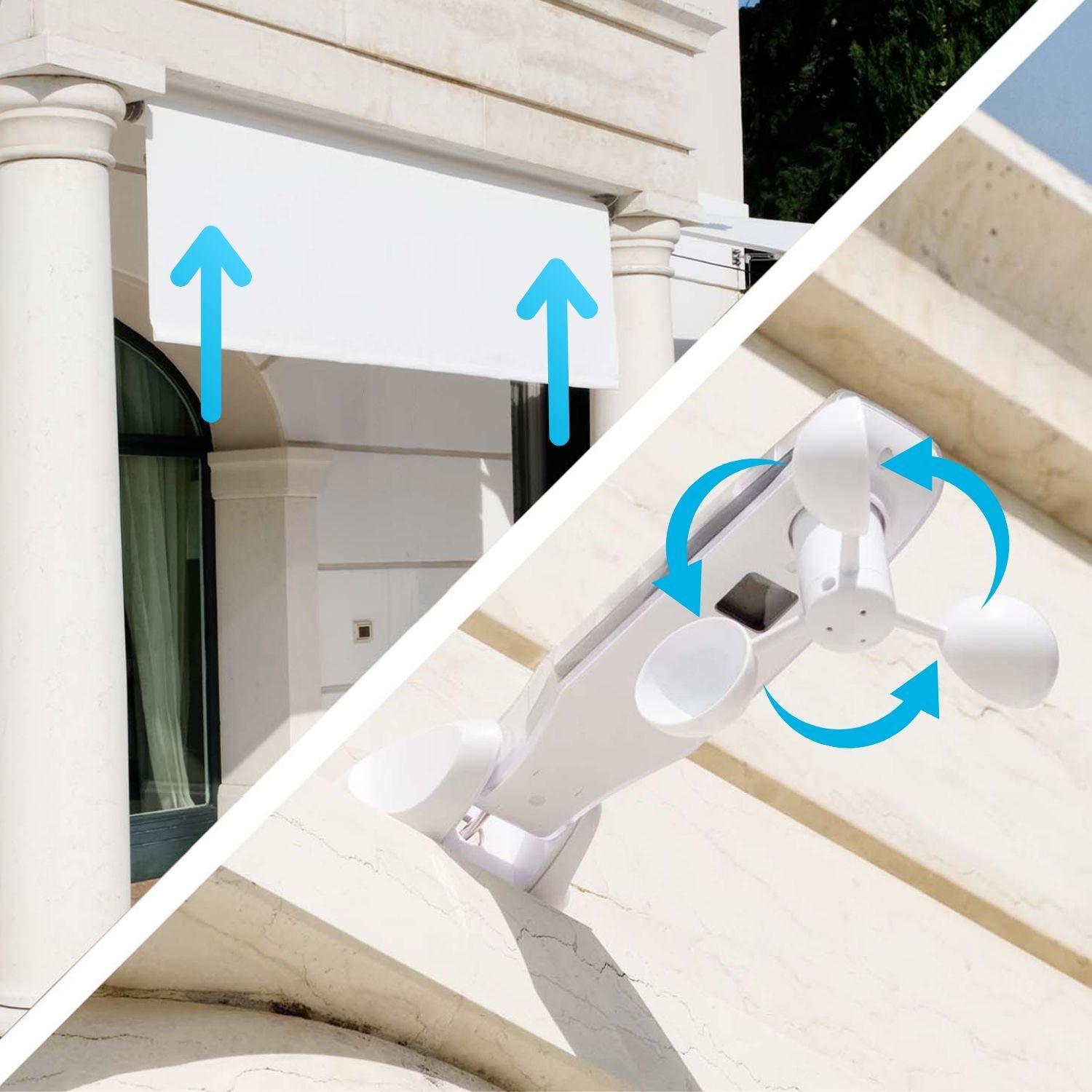

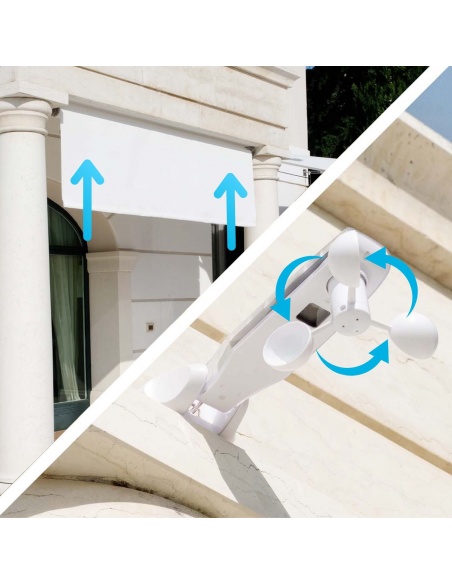

Thanks to the Maanta anemometer the blind automatically goes up when the wind is too strong. More safety, fewer worries.

Long-Term Autonomy
It operates for months without recharging

Thanks to the high-capacity battery and efficient solar panel, the kit provides extended autonomy even in less then optiman lighting conditions. Reliable performance, always.

No Maintenance Needed
Install, use, and forget

Once installed, you don’t have to think about it anymore. It works without the need for checks or interventions: pure comfort, zero maintenance.

Smart Control from Anywhere
Home automation on your fingertips

Compatible with the WiFi Bridge: control your blind via your smartphone or voice commands through smart assistants. Intuitive technology that simplifies life. Purchase it here: link.

Smart and wireless control with the Motorization Kit for Maanta drop-down blinds

Manage shade with one touch

Transform the way you manage your outdoor areas with the Motorization Kit for Maanta drop-down blinds. This solar-powered system is the only one that recharges the integrated battery inside the motor, allowing you to easily control your blinds without cables or the need for specialized labor.

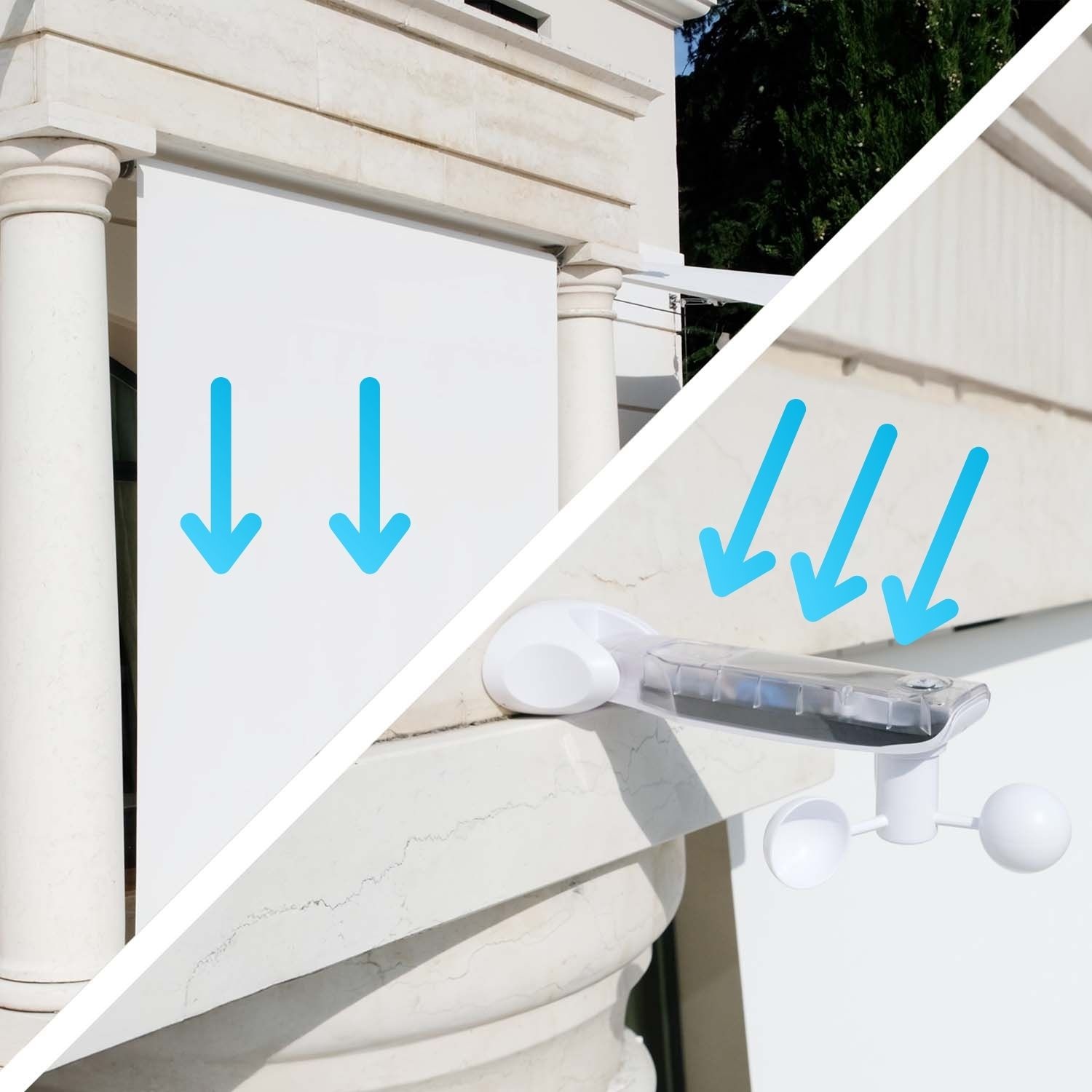

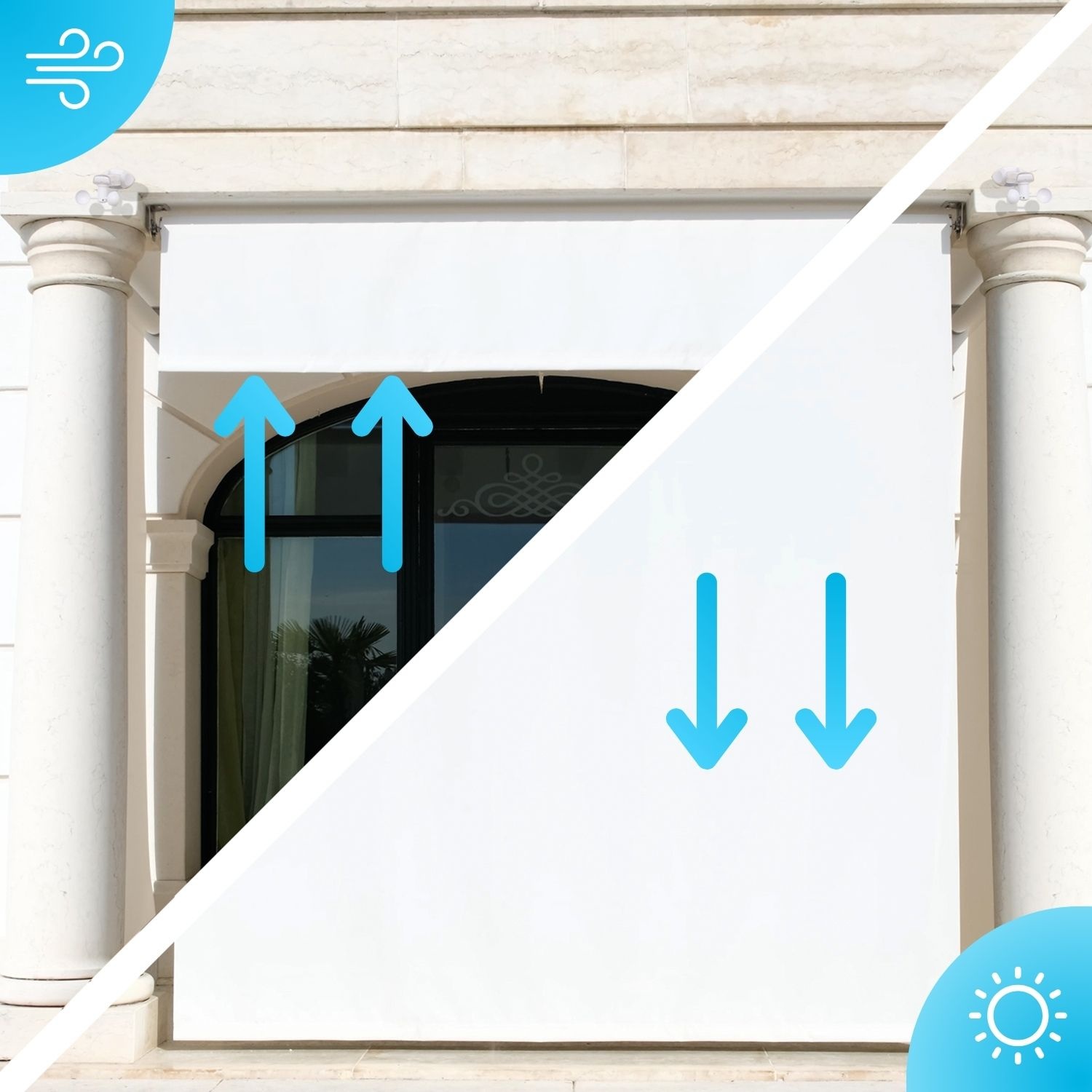

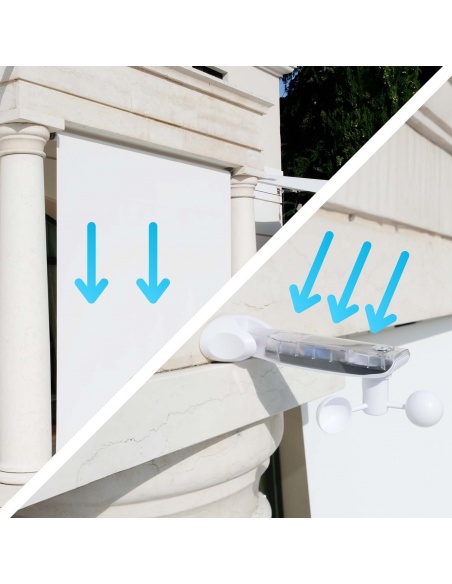

With the wind sensor integrated into the kit (click here for the anemometer product sheet), the blind automatically closes in case of bad weather, reducing concerns, preventing damage, and ensuring greater safety. The sensor detects wind and gusts, retracting the blind and avoiding potential damage.

Additionally, the included remote control allows you to raise or lower the blinds with a simple touch, offering maximum comfort directly from your couch.

Simple Installation Without Maintenance

The kit is easy to install on Maanta roller shades and takes just a few minutes, with no need for an electrician. It requires no maintenance, ensuring long-term, efficient operation.

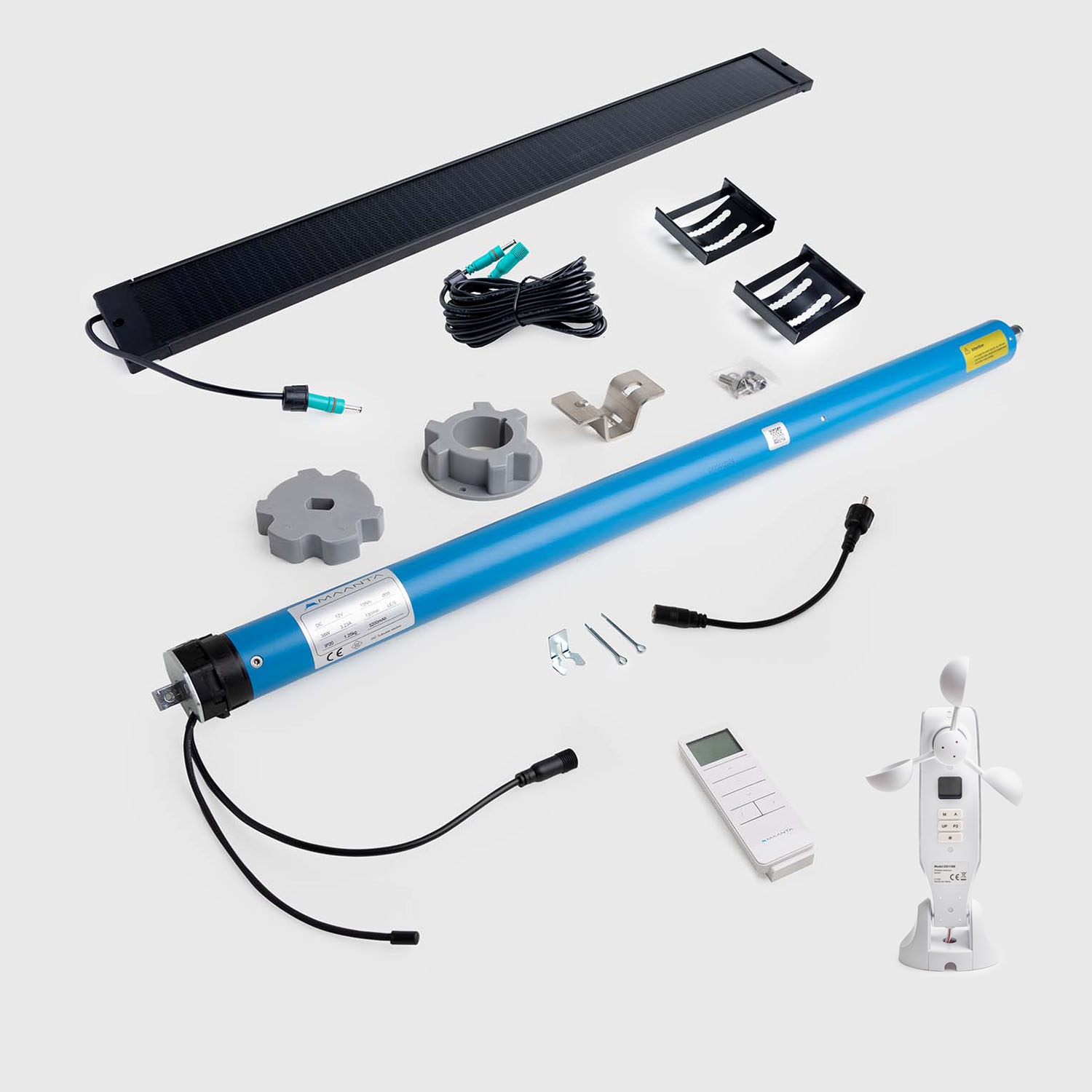

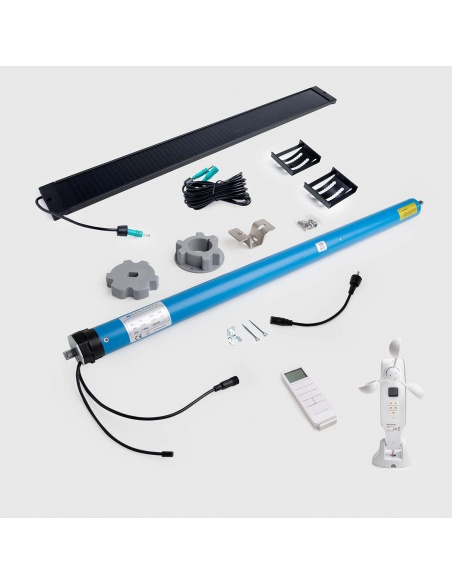

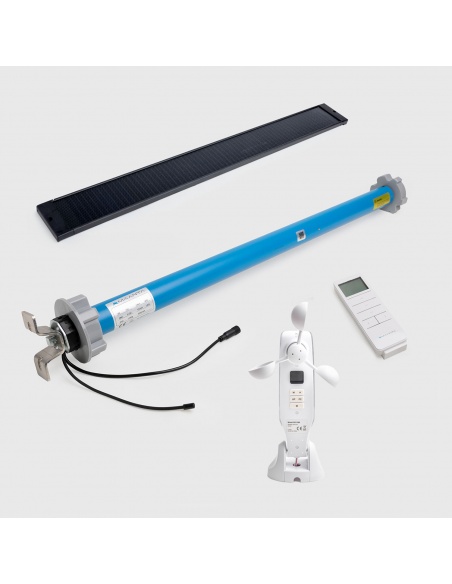

Package Contents:
  • 12V Motor (13N.m/13rpm) with integrated battery, autonomy of over 200 cycles
  • Solar panel (21.6 x 2.3 x 0.4 in) for fast charging in 2 days
  • Remote control with 15 channels to manage up to 15 blinds simultaneously
  • Anemometer for automatic control of your blind’s raising and lowering
Expand Functionality with Optional Accessories

In order to get even more advanced control, the kit is compatible with the WiFi Bridge (available here), allowing you to integrate blinds into your smart home systems. You can conveniently manage them from your smartphone or through voice commands with Amazon Echo, Google Home, or IFTTT.

NOTE: The Motorization Kit is exclusively compatible with Maanta drop-down blinds and replaces the manual system. It cannot be used simultaneously with a crank and winch.

data sheet

ModelMotorization Kit for roller shades
Total Weight3,79 lbs
STRUCTURE
Included MaterialsMotor, solar panel, remote control, anemometer, screws
Excluded Materials

Roller shades

CompatibilityCompatible with:
The motorization is not compatible with the manual system (winch + crank).
TECHNICAL SPECIFICATIONS

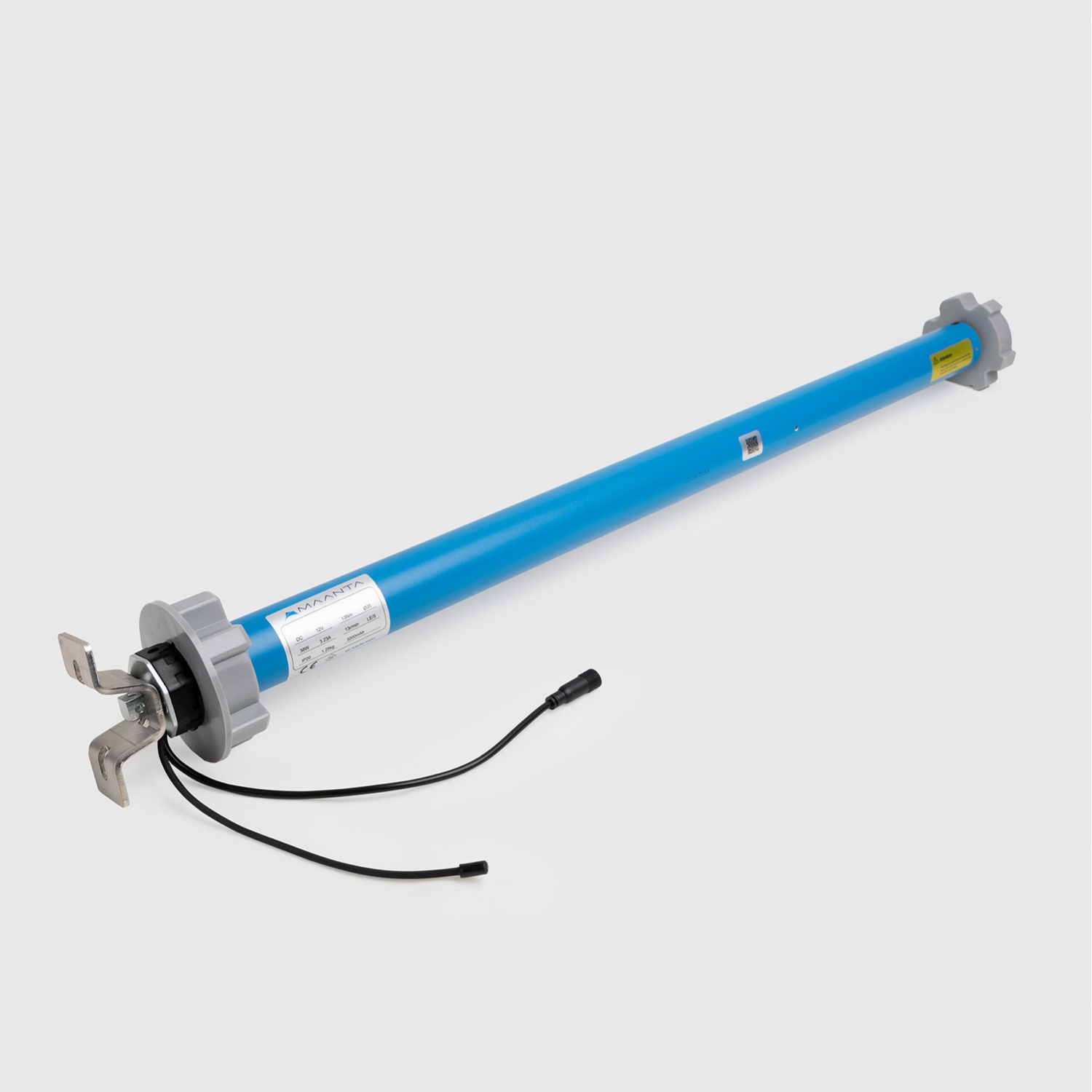

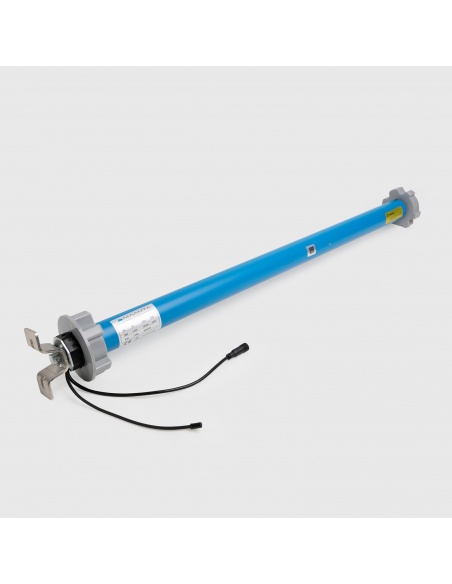

Motor
Motor TypeTubular motor for roller shades
VoltageDC 12V
Power38W 3.23A
Maximum Torque13 N.m
Rotation Speed13 rpm
Motor DimensionsLength: 26 inches
Diameter: 1,38 inches
Weight2,76 lbs
Power Supply TypeSolar panel
Operating Autonomy200 up and down cycles on a single charge
Integrated Battery Capacity3200 mAh
Battery Technology12V lithium-ion battery
Operating Temperature14°F ~ 122°F
Radio Frequency433.925 MHz

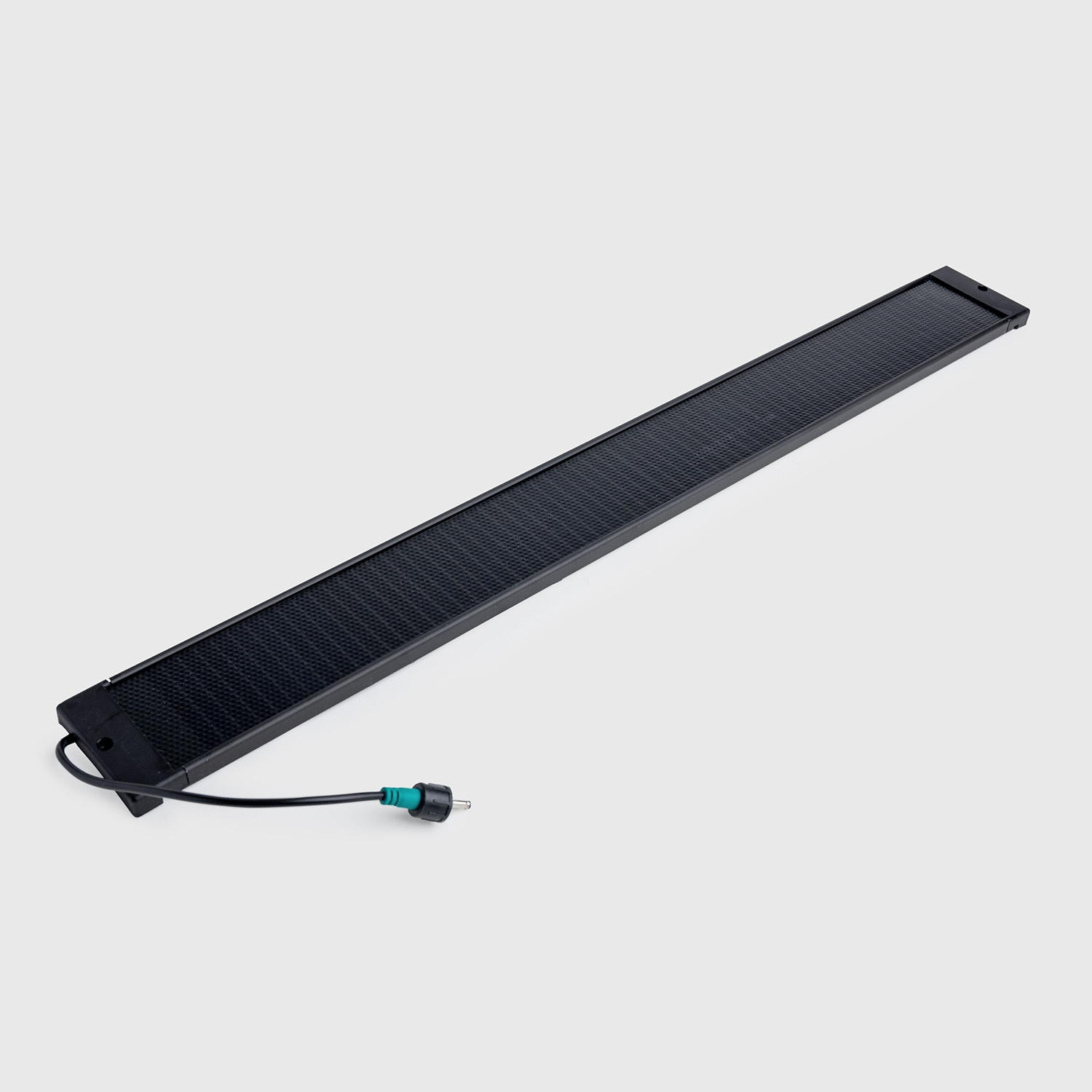

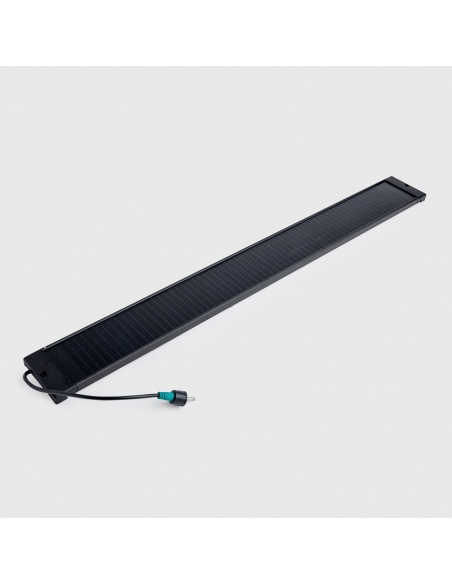

Solar Panel
Power4.9 W
VOC20 V
Voltage333 mA
Nominal Current307 mA
Waterproof RatingIP55
DimensionsLength: 21 inches
Width: 2 inches
Thickness: 1 inches
Operating Temperature14°F ~ 122°F
Energy Efficiency22.5%
Weight0,88 lbs

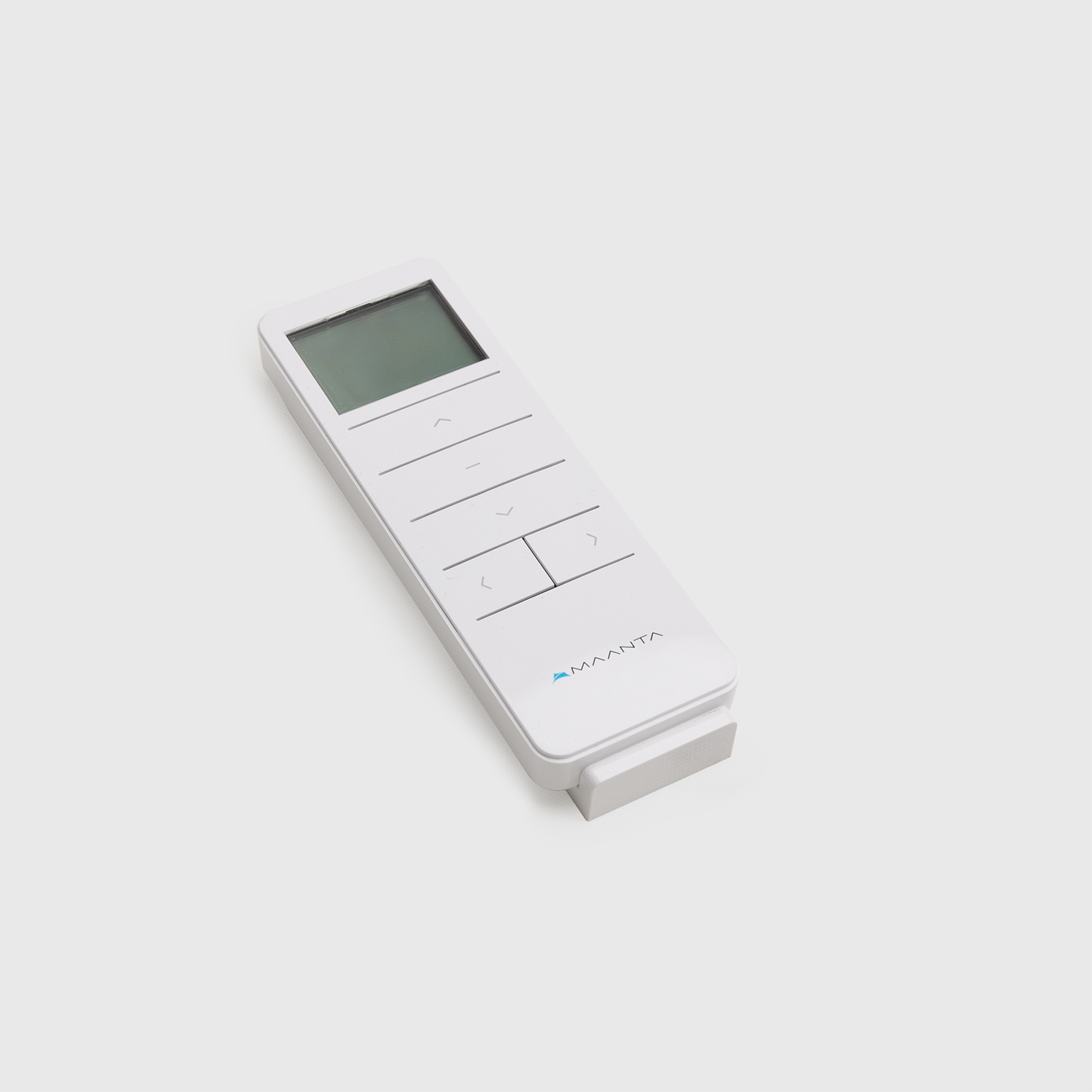

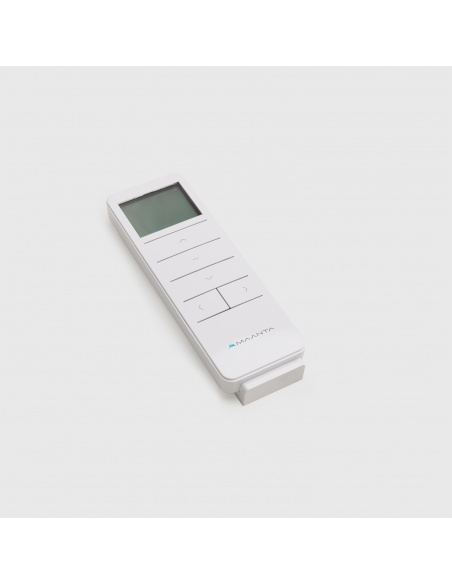

Remote Control
Remote Control TypeRF (Radio Frequency)
Operating Frequency433 MHz
Maximum RangeUp to 656 ft in open spaces, 115 ft indoors
Power SupplyCR2450 battery, 3V
Battery Life>2 years
Number of ChannelsMaximum 15 channels
DimensionsLength: 5 inches
Width: 2 inches
Height: 1 inches
Operating Temperature14°F ~ 122°F
Weight0,15 lbs

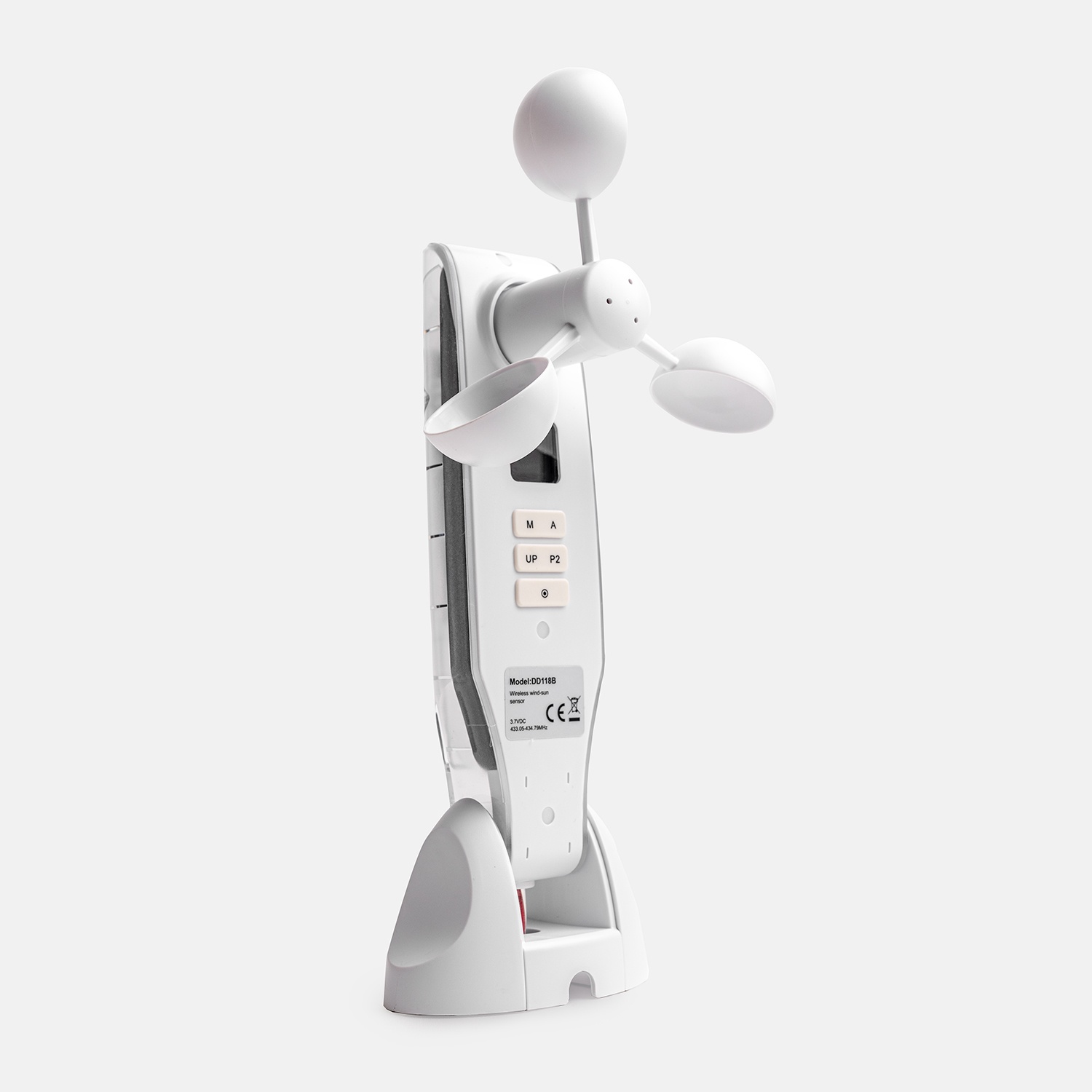

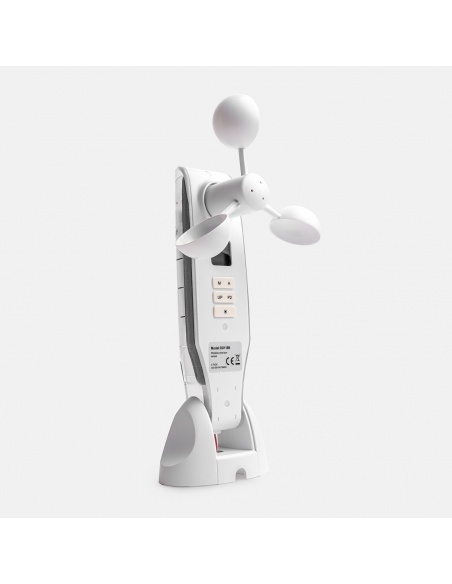

Anemometer
Operating temperature14 °F, 140 °F
Radio frequency433.05- 434.79 MHz
VoltageDC 3.7 V
Light settingIntensity scale from 0 to 100 klux
The light sensor can be deactivated during configuration or reset for customised management
Wind settingIntensity scale from 0 to 180 km/h (112mph)
Display typeDisplay LCD
Charge typeBattery with solar-powered charging or via USB C in the base
Measures10 1/4 in x 3 1/2 in x 3 1/2 in
Overall weight9.87 oz
PACKAGING AND WARRANTY
PackagingMotor: 28 x 3 x 3 inches
Remote Control: 6 x 2 x 1 inches
Solar Panel: 24 x 3 x 2 inches
Anemometer: 11 ¼ x 5 ¼ x 4 ¼ inches
Warranty2 years

HOW TO INSTALL THE MOTORIZATION KIT

Installing the Motorization Kit for blinds is simple and does not require specialized labor or an electrician. Follow the assembly video instructions or download the PDF guide. If you need additional support, our technical team is available to assist you.

Data sheet, package contents, assembly guide and warranty.

Download the pdf guide

FAQ

Is the kit compatible with all roller shades?

No, the Motorization Kit is exclusively compatible with Maanta roller shades    and cannot be used simultaneously with manual systems (crank and winch).

What should I do if the solar panel does not work or does not receive enough light?

 If needed, you can use the Maanta 12V charger to recharge the motor. The full charging process takes only 2 hours (charger not included in the kit).

Is an electrical connection required?

No, the motorized kit is completely off-grid thanks to the integrated solar panel. No cables or electrical wiring are necessary.

Can I control the kit with my smartphone?

 Yes, with the optional WiFi Bridge, you can control the awning via Google Home, Amazon Alexa, or IFTTT.

Is the kit weather-resistant?

Yes, the motor, solar panel and anemometer are designed for long-term outdoor use.

Can I control multiple blinds at the same time?

Yes, the remote control with 15 channels allows you to manage up to 15 blinds simultaneously.

How do I integrate the kit into a smart home system?

By purchasing the Wi-Fi Bridge, you can connect the awning to Alexa, Google Home, or IFTTT and control it via voice commands or automated routines.

Does the kit work in areas with low sunlight?

The solar panel is optimized for maximum energy collection, even in diffused light. However, in areas with low exposure, the 12V charger is recommended for support charging.

Does the kit require maintenance?

Minimal maintenance is required. It is recommended to clean the solar panel regularly to ensure efficiency and occasionally check the battery in the remote control.
